Product Code: PRG-VCT
| Geometric Capacity | 30.000 lt |
| Tank Pressure | 4 bar |
| Tank Type | L4BH - ADR Class 3,8,9 (TUV SUD) |
| Vacuum Pump Type | Rotary vane |
| Tank Material | SS304 Stainless Steel |
| Vacuum Flow Capacity | max. 1.200 m³/h |
| Filtration | ATEX yor Stainless steel |
| Pump Drive | Auxiliary diesel engine |

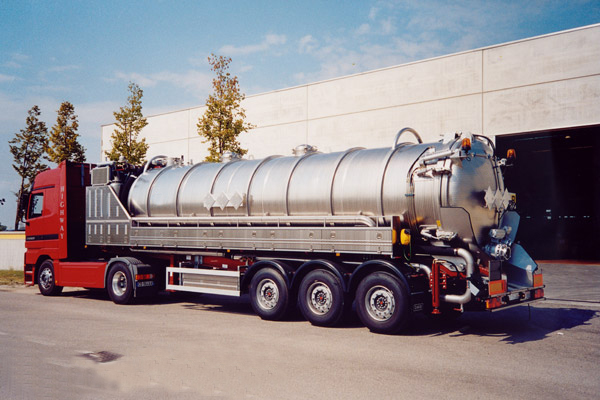

Vacuum/Cesspit emptier semi-trailer is used for removing and transporting sand, stones, bottles, cans, grease, sludge and other debris from the sanitary sewer and/or drain lines or industrial applications, by strong suction action which is created by a vacuum pump. Enough breakwaters are located in the tank as connected by bolts. Tank is connected with bearing elements to over sub chassis by a suitable slope. The tailgate is connected to the tank by top hinges and it opens up by a hydraulic cylinder and hydraulic hand pump. Chassis and axles are produced referring to highway and TSE norms. Jack arms are worked parallelly, double speed, wide wedge, telescopic, static has 50 ton- dynamic 25-ton capacity.
Tanks are approved by TUV Austria with L4BH tank code.
